Multiple Column Report. For Example - Payment Remittance.

Here is a method of adding fixed number of columns into a report. In my case Additional Remittance Form report, which is often printed after or when check is issued.

Sometimes we need to list all the Bills, the check is paid for.
In certain format. In my case in 3 (Three) columns.

For example for check 00100002 we have 4 Bills attached:


Well, I know, it will be good to show how much exactly each bill is paid for, but this is minor.
Lets achieve first multiple column printing.

First of all, I would need a View in a database, that will return 3 Bill Numbers in a row, in a sequential order.
If I used standard select

select p.RefNbr,i.CompanyID, i.DocType, i.RefNbr
from APPayment p inner join APAdjust a on p.CompanyID = a.CompanyID and
p.DocType = a.AdjgDocType and p.RefNbr = a.AdjgRefNbr
inner join APInvoice i on p.CompanyID = i.CompanyID and a.AdjdDocType = i.DocType and
i.RefNbr = a.AdjdRefNbr

It will just list me all the Payments from AP with corresponding Bills:
RefNbr CompanyID DocType RefNbr
--------------- ----------- ------- ---------------
000001          2           INV     038630
000002          2           INV     038631
000003          2           INV     038632
000005          2           ACR     038652
000005          2           INV     038648
000005          2           INV     038649
000005          2           INV     038650
000004          2           QCK     000004

Well, it shows for Check 000005 we have 3 Bills and 1 Credit Adjustment. This relates to my example above with what we actually want to achieve.

Second step would be - we need to add a numeric counter, to count the order of those rows. In my case from 1 to 4 for highlighted rows. Will also be good to add a type of Check, as we may have different.
Lets rework our view:

select p.RefNbr as PayNbr, p.DocType, i.CompanyID as CompanyID, i.DocType as InvDocType, i.RefNbr as InvRefNbr
from APPayment p inner join APAdjust a on p.CompanyID = a.CompanyID and
p.DocType = a.AdjgDocType and p.RefNbr = a.AdjgRefNbr
inner join APInvoice i on p.CompanyID = i.CompanyID and a.AdjdDocType = i.DocType and
i.RefNbr = a.AdjdRefNbr
order by i.RefNbr


PayNbr          DocType CompanyID   InvDocType InvRefNbr

--------------- ------- ----------- ---------- ---------------

000004          QCK     2           QCK        000004

000001          CHK     2           INV        038630
000002          CHK     2           INV        038631
000003          CHK     2           INV        038632
000005          CHK     2           INV        038648
000005          CHK     2           INV        038649
000005          CHK     2           INV        038650
000005          CHK     2           ACR        038652

Ok, now lets add a counter, generic rule will be to create a special RowNumber field:

SELECT Bill Number, other fields, Check Number
(SELECT COUNT(*) FROM table t2 WHERE t2.Bill Number <= t.Bill Number and t2.Check Number = t.Check Number) AS RowNumber
FROM Table t
ORDER BY Bill Number

Here is what our view will become:

select p.RefNbr as PayNbr, p.DocType, i.CompanyID as CompanyID, i.DocType as InvDocType, i.RefNbr as InvRefNbr,
(SELECT COUNT(*) FROM APPayment p2 inner join APAdjust a2 on p2.CompanyID = a2.CompanyID and
p2.DocType = a2.AdjgDocType and p2.RefNbr = a2.AdjgRefNbr
inner join APInvoice i2 on p2.CompanyID = i2.CompanyID and a2.AdjdDocType = i2.DocType and
i2.RefNbr = a2.AdjdRefNbr WHERE i2.RefNbr <= i.RefNbr AND p2.RefNbr = p.RefNbr and a2.AdjgDocType = a.AdjgDocType) AS rownumber
from APPayment p inner join APAdjust a on p.CompanyID = a.CompanyID and
p.DocType = a.AdjgDocType and p.RefNbr = a.AdjgRefNbr
inner join APInvoice i on p.CompanyID = i.CompanyID and a.AdjdDocType = i.DocType and
i.RefNbr = a.AdjdRefNbr
order by i.RefNbr

PayNbr Type CompanyID   InvDocType InvRefNbr  rownumber
--------------- ------- ----------- ---------- --------------- -----------
000004          QCK     2           QCK      000004          1
000001          CHK     2           INV        038630         1
000002          CHK     2           INV        038631        1
000003          CHK     2           INV        038632         1
000005          CHK     2           INV        038648         1
000005          CHK     2           INV        038649         2
000005          CHK     2           INV        038650        3
000005          CHK     2           ACR       038652        4

Here we have a number 1 to 4. Now we have more complicated task - to arrange these Invoice Numbers into 3 columns, within a single row. To make it simpler, I assume that no check will pay for more than 3000 invoices. This is realistic example. Formula to describe all the sequential numbers that will fall into respective columns will be
1. Column One: N1 = a*3-2. Where N1 are numbers to fall into column 1, and a - is the number of row.
For example for row 1 number should be 1, for row 2 number would be 4, because number 2 will go for column 2, and number 3 will go for column 3. Same way for columns 2 and 3.
2. Column Two: N2 = a*3-1
3. Column Three: N3 = a*3
Based on above, invoice 038648 should go to row 1 column 1, 038649 to row 1 column 2, 038650 to row 1 column 3 and last 038652 should jump to row 2 and column 1. The other words, sequential number 1 corresponds col 1 row 1, 2 = col2 row 1, 3= col3 row 1 and 4 = col1 row 2.

To help me to arrange this logic within a view, I will create 3 tables, each with sequential numbers. And each table will have only numbers that corresponds to columns 1, 2 and 3 respectively.

CREATE TABLE [dbo].[XSW_Column1_Of3](
[Counting] [int] NOT NULL
) ON [PRIMARY]
GO

CREATE TABLE [dbo].[XSW_Column2_Of3](
[Counting] [int] NOT NULL
) ON [PRIMARY]
GO

CREATE TABLE [dbo].[XSW_Column3_Of3](
[Counting] [int] NOT NULL
) ON [PRIMARY]
GO

Now I will populate them using this script, again, its in assumption that we will have up to 3,000 bills per check:

declare @i as int
set @i = 1
while @i <= 1000
BEGIN
insert XSW_Column1_Of3
SELECT @i*3-2
insert XSW_Column2_Of3
select @i*3-1
insert XSW_Column3_Of3
select @i*3
SELECT @i = @i +1
END

Now lets create a view with Raw data for all 3 columns:


Create VIEW XSW_APRemitRaw
AS
SELECT r.PayNbr, r.PayDoc, r.CompanyID, ROUND((r.rownumber+2)/3,0) as RowNumber,
InvRefNbr1 = CASE WHEN r.rownumber in (select Counting from XSW_Column1_Of3) THEN r.InvRefNbr ELSE '' END,
InvRefNbr2 = CASE WHEN r.rownumber in (select Counting from XSW_Column2_Of3) THEN r.InvRefNbr ELSE '' END,
InvRefNbr3 = CASE WHEN r.rownumber in (select Counting from XSW_Column3_Of3) THEN r.InvRefNbr ELSE '' END
FROM (select p.RefNbr as PayNbr, p.DocType as PayDoc, i.CompanyID as CompanyID, i.DocType as InvDocType, i.RefNbr as InvRefNbr,
(SELECT COUNT(*) FROM APPayment p2 inner join APAdjust a2 on p2.CompanyID = a2.CompanyID and
p2.DocType = a2.AdjgDocType and p2.RefNbr = a2.AdjgRefNbr
inner join APInvoice i2 on p2.CompanyID = i2.CompanyID and a2.AdjdDocType = i2.DocType and
i2.RefNbr = a2.AdjdRefNbr WHERE i2.RefNbr <= i.RefNbr AND p2.RefNbr = p.RefNbr and a2.AdjgDocType = a.AdjgDocType) AS rownumber
from APPayment p inner join APAdjust a on p.CompanyID = a.CompanyID and
p.DocType = a.AdjgDocType and p.RefNbr = a.AdjgRefNbr
inner join APInvoice i on p.CompanyID = i.CompanyID and a.AdjdDocType = i.DocType and
i.RefNbr = a.AdjdRefNbr) r


PayNb PayDoc CompanyID RowNumber   InvRefNbr1      InvRefNbr2      InvRefNbr3
--------------- ------ ----------- ----------- --------------- --------------- ---------------
000001          CHK    2           1           038630
000002          CHK    2           1           038631
000003          CHK    2           1           038632
000005          CHK    2           2           038652
000005          CHK    2           1           038648
000005          CHK    2           1                           038649
000005          CHK    2           1                                           038650
000004          QCK    2           1           000004

Well I modified a RowNumber a little bit to show not Sequential number but Actual Row by adding ROUND((r.rownumber+2)/3,0) as RowNumber  statement. I need it for aggregation.

Now final step, lets aggregate the view into single row.

Create VIEW XSW_APRemittance
AS
select PayNbr, PayDoc, CompanyID, RowNumber, MAX(InvRefNbr1) as Inv1, MAX(InvRefNbr2) as Inv2, MAX(InvRefNbr3) as Inv3
from XSW_APRemitRaw
group by PayNbr, PayDoc, CompanyID, RowNumber
go

PayNbr   PayDoc CompanyID   RowNumber   Inv1  Inv2            Inv3
--------------- ------ ----------- ----------- --------------- --------------- ---------------
000001          CHK    2           1           038630
000002          CHK    2           1           038631
000003          CHK    2           1           038632
000004          QCK    2           1           000004
000005          CHK    2           1           038648          038649          038650
000005          CHK    2           2           038652

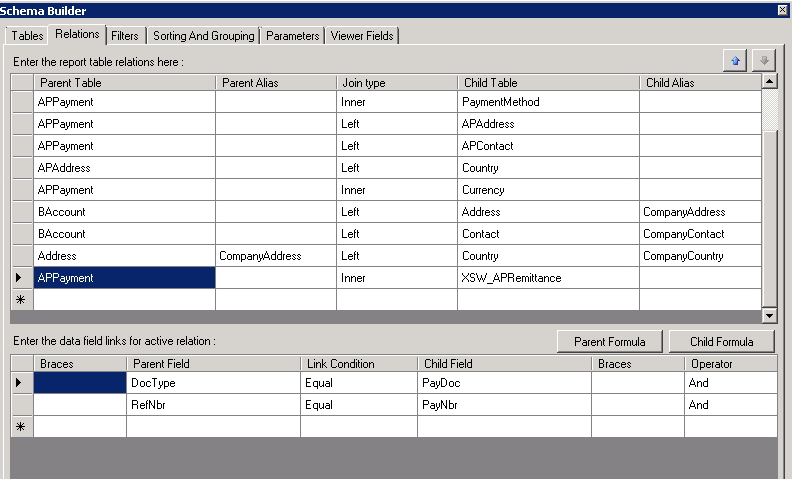

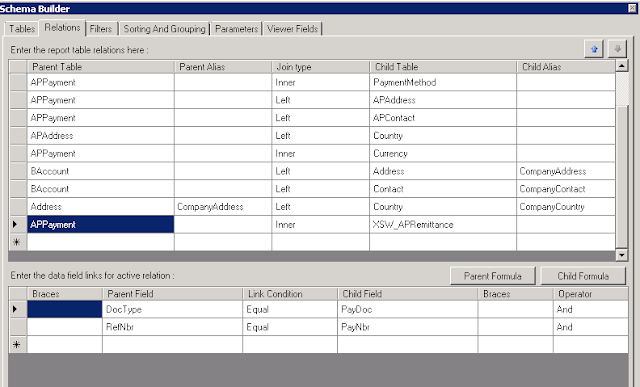

This is exactly what we need to add to report. Well I will skip adding a view to report, please refer to my earlier blogs for that. Just mention, Key fields should be PayNbr, PayDoc and RowNumber.



Added a group
And then added 3 fields to report

That is all,
Best Regards,
Sergey.
